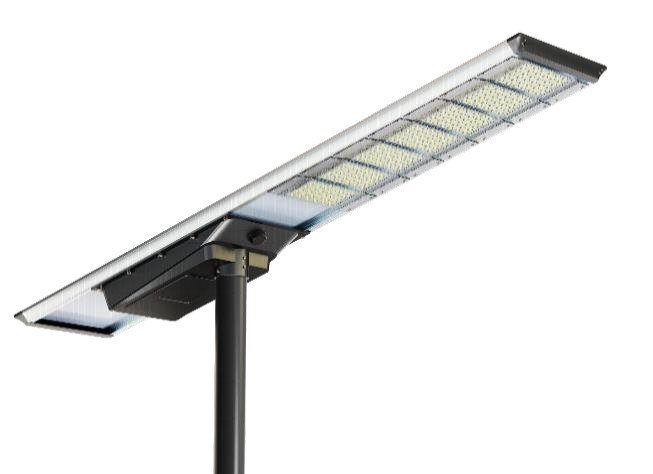

ALLTOP Titan Series (ALP 0477C250-01).

Description

The Gold Standard of Solar Infrastructure

At Shantis Designs Solar, we offer the ALLTOP Titan Series for clients requiring municipal-grade performance. This isn’t just a street light; it is a self-contained power plant. By using an 18V/140W solar panel, the Titan harvests energy at twice the speed of standard units, while its high-voltage 12.8V battery system ensures the SMD 3030 LEDs operate at peak efficiency without the voltage drops common in smaller lights.

Key Performance Features:

• 210 lm/w Ultra-High Efficacy: The Titan uses premium SMD 3030 LED chips and secondary optical lenses to extract more light per watt than any other model in the catalog.

• 12.8V High-Voltage Battery System: Unlike 3.2V residential lights, the Titan runs on a professional 12.8V 72AH LiFePO4 bank. This higher voltage reduces heat during discharge and significantly extends the lifespan of the internal electronics.

• 140W Monocrystalline Engine: The massive top-integrated panel is crafted from A-grade monocrystalline silicon, designed to reach a full charge in just 6 hours, even in partially cloudy conditions.

• Aerodynamic Aluminum Alloy: The nearly 1.9-meter-long body is constructed from high-tensile Aluminum Alloy, designed with a slim profile to minimize wind loading at heights of 15 meters.

• Extreme Height Capability: Optimized for installation at 12–15 meters, making it one of the few all-in-one solar lights capable of meeting international highway lighting standards.

• Dusk-to-Dawn Intelligence: Features an advanced MPPT controller that optimizes the discharge cycle, providing consistent brightness through the night and ensuring the battery is never over-discharged.

Technical Specifications:

• Model: ALP 0477C250-01

• Rated Power: 300W

• Solar Panel: 18V / 140W Monocrystalline

• Battery: LiFePO4 12.8V 72AH (921.6Wh)

• LED Chip: SMD 3030 (6000K-6500K)

• Luminous Efficiency: 210 lm/w

• Charging Time: 6–8 Hours

• Material: Aluminum Alloy

• Product Size: 1869mm x 386mm x 153mm

• Install Height: 12–15 Meters

• IP Rating: IP65 Waterproof

• Warranty: 3 Years
