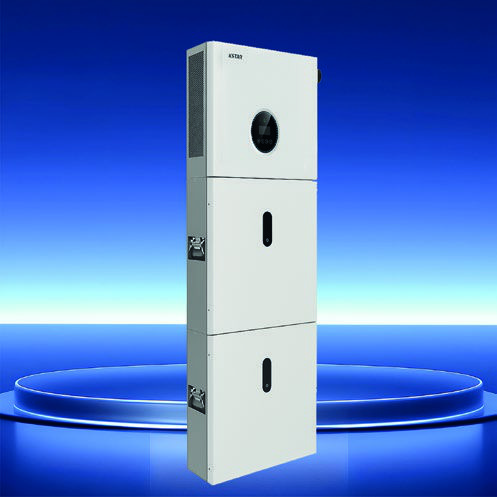

KSTAR HH-6KS + 5.12kWh LFP: The Complete Hybrid Power Station

The KSTAR HH-6KS system is designed for modern homes that require high power output and uncompromising safety. By integrating a 6kW Single-Phase Hybrid Inverter with a 5.12kWh high-cycle LFP battery, this system ensures you remain powered during blackouts while maximizing your solar self-consumption.

The Hybrid Powerhouse (HH-6KS Inverter)

• 6kW Power Capacity: Robust enough to run heavy household appliances like refrigerators, microwave ovens, water pumps, and entertainment systems.

• Hybrid Intelligence: Seamlessly blends power from your solar panels, the grid, and the battery. It prioritizes solar use to lower your bills and keeps the battery charged for emergencies.

• Smart UI & Connectivity: Features a large 4.3-inch touchable color screen for easy on-site monitoring, plus built-in WiFi for real-time tracking via the mobile app.

• Scalability: Supports parallel functionality, allowing you to link additional inverters as your home’s energy needs grow.

The Energy Core (5.12kWh LFP Battery)

• Premium LiFePO4 Cells: Utilizing EVE Grade A lithium cells, known for superior thermal stability and safety compared to standard lithium-ion.

• Ultra-Long Life: Designed for 10,000 cycles at 90% Depth of Discharge (DoD), offering a service life of well over 10–15 years.

• Advanced BMS: The built-in Battery Management System protects against over-voltage, short circuits, and extreme temperatures, ensuring the battery remains healthy for a decade.

• IP65 Protection: The battery pack is rated for high-level protection, making it suitable for both indoor and semi-outdoor installations.

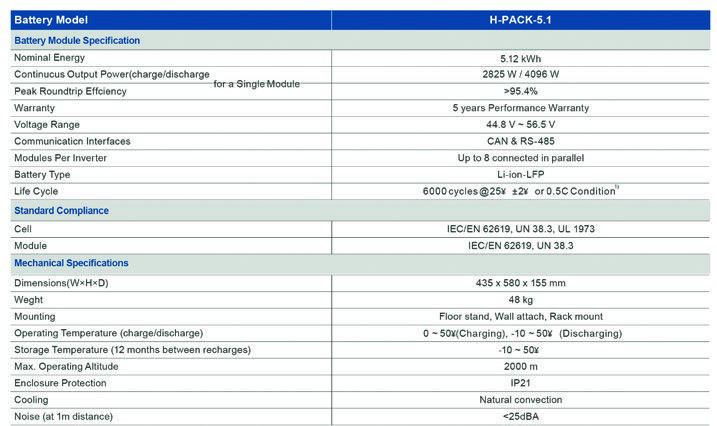

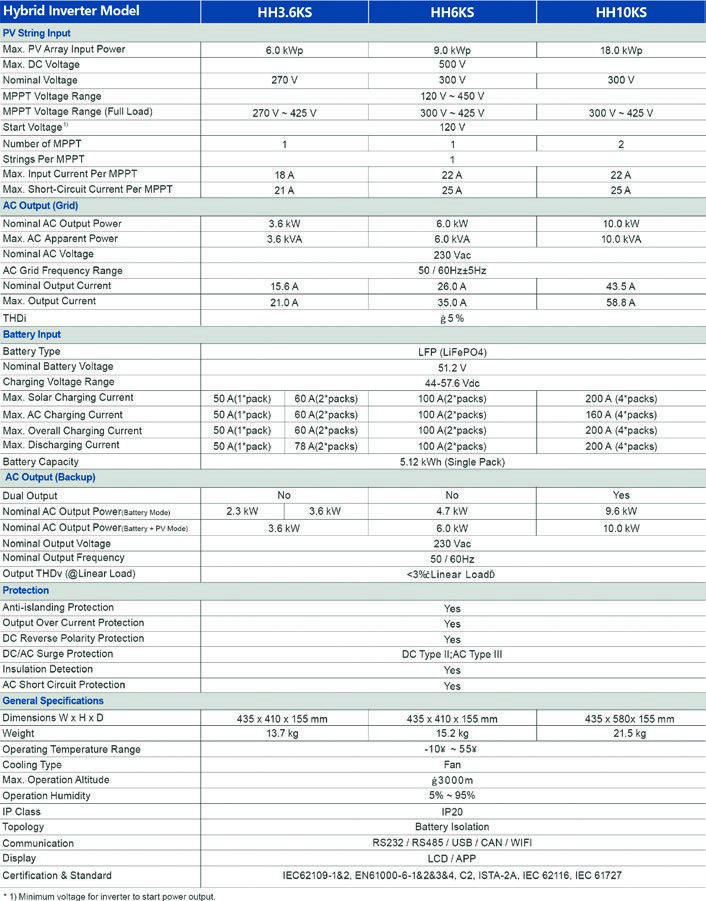

System Specifications at a Glance

Installation & Usage Tips from Shantis Designs Solar

1. Indoor Placement: While the system is rugged, the HH-6KS inverter is best suited for indoor or sheltered installations (IP21/IP22 rating) to protect the touch-screen interface.

2. Solar Pairing: To fully utilize the 6kW inverter, we recommend pairing it with at least 6kW to 8kW of solar panels (like the JA Bifacial or Cekoa Mono series).

3. App Setup: Once installed, connect the logger to your home WiFi. This allows our team at Shantis Designs Solar to provide remote diagnostics and firmware updates if needed.

4. Battery Expansion: If 5.12kWh isn’t enough for your overnight load, this system supports adding up to 4 battery modules in parallel for a total of 20.48kWh.

5. Setting Priorities: Use the “Self-Consumption” mode to use solar first, then battery, and finally grid. This is the most effective way to eliminate your electricity bill.

Why Choose KSTAR from Shantis Designs Solar?

KSTAR is a global leader in power electronics with 30 years of expertise. When you purchase this system from Shantis Designs Solar, you get:

• Genuine Tier-1 Equipment: No grey-market imports; only official, warranted KSTAR products.

• Expert Integration: We ensure your battery communication cables are correctly configured for the longest possible lifespan.

• Full Support: From initial sizing to post-installation app training.
